SKU:TS-107

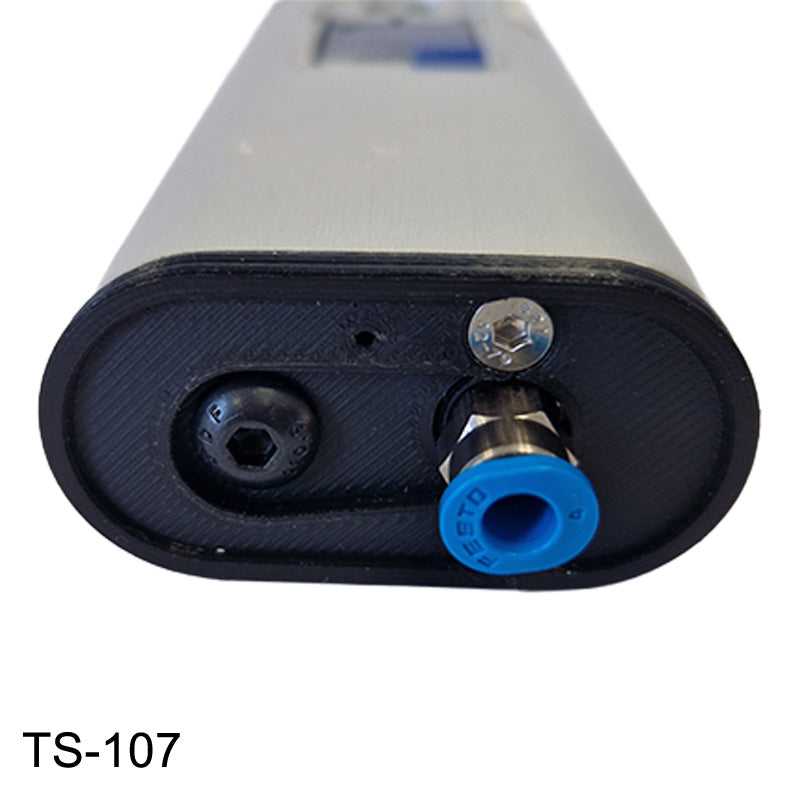

Portable Dissolved Oxygen Analyzer (0–500 ppb)
$4,200.00 USD
$4,200.00 USD
Sale
Sold out
Couldn't load pickup availability
The Portable Dissolved Oxygen Analyzer (0-500 ppb) is a compact, handheld solution designed for high-precision measurement of dissolved oxygen in liquids, including beer, wine, soft drinks and water.
Engineered with advanced opto-chemical gas sensing technology, this portable analyzer delivers fast, accurate ppb-level oxygen measurements which help beverage producers and quality teams prevent oxidation, extend shelf life and maintain overall product consistency.
Benefits
- Highly accurate opto-chemical oxygen sensor (0-500ppb)
- Fast Response Time (<10 seconds) for immediate decision-making
- Validates oxygen levels across multiple production points
- Ensures consistent quality from tank to packaging
- Reduces risk of oxidation and product spoilage
- No Warm-Up Required, On-the-Go and ready to use instantly
- Portable & Compact Design, powered by USB and rechargeable batteries
Applications
-
Beverage production (beer, wine, soft drinks)
-
Bottling and packaging quality control
-
Process validation and troubleshooting
-
Lab and R&D liquid testing
Models
- TS-700 - Dissolved Oxygen Meter - Sampling w/ Data Logging*
- TS-600 - Dissolved Oxygen Meter -Flow Through
-
TS-302 - TecWeld Oxygen and CO2 Weld Purge Monitor w/ Data Logging*
- TS-300 - TecWeld Oxygen Analyzer w/ Data Logging*
- TS-202 - Tecpen MAP Oxygen and CO2 Analyzer w/ Data Logging*
- TS-200 - Tecpen MAP Oxygen Analyzer w/ Data Logging*
-
TS-HSA - Fixed Headspace Oxygen and CO2 Analyzer
Specifications
- Measurement Range: 0–500 ppb (0–0.5 mg/L)
- Measurement Gas: Oxygen
- Mediums: Fluid
- Accuracy ±2% (0–200 ppb)
- Resolution: 1 ppb (0.001 mg/L)
- Response Time: <10 seconds
- Max Pressure: 5 bar
- Data Interface: USB
- Display: OLED
- Temperature Range: -5°C to +20°C (23–68°F)
- Temperature Compensation: 4–20°C (39–68°F)
- Power Supply: 5V USB / rechargeable LiPo battery
- Cleaning Housing: No organic solvents, 40% EtOH
- Cleaning Sample Line: Water, 40% EtOH, mild detergents, no organic solvents
- Battery Life: > 3 hours per charge
- Case: Anodized aluminum
- Device Weight: 0.50 lbs.
- Device Dimensions: 7 x 2 x 1 inch
- Protection class: IP54
- Main service interval (Service including necessary retrofitting): 3 years
- Sensor cap replacement interval: 1 year
- Recommended zero-point adjustment by customer: 3 months
What's Included
- Fluid Portable Dissolved Oxygen Analyzer
- Carrying Case
- 2x 50cm hose 6mm
- 1x 30cm outlet hose
- USB cable + USB data stick (manual & certificate)
- Pressure reduction valve
Warranty
- 1-year warranty - see CO2Meter Terms & Conditions.
-
