Software & Documentation Downloads



GasLab® Configuration & Data Logging Software

GasLab® is our next generation software specifically designed for all CO2meter supplied sensor development kits and data logging products.

GasLab Software

GasLab® 2.2.1.23 Now Supporting:

  • TX (ATEX) Sensor
  • GasBox - easily connect and communicate with UART/RS485/I2C with sensors and pre-wired harnesses
  • SAN-11 - data log downloads and configuration
  • ZGO9 with UART & I2C
  • Cubic CO2
  • Cubic CH2

Products Supported:

    • MX200 Series UV Flux Oxygen Smart Sensor Development Kits
    • MX200 Series CO2 Smart Sensor Development Kits
    • MX200 Series SprintIR CO2 Smart Sensor Development Kits
    • EC200 Series CO Smart Sensor Development Kits
    • EC200 Series Oxygen Smart Sensor Development Kits
    • LP8 Ultra low Power Sensor Development Kits
    • AMP 6600 and 6700 Series Sensor Development Kits
    • Figaro Sensor Development Kits
    • K30/K33/S8 Sensor Development Kits
    • COZIR, LP and SPRINTIR Development Kits
    • Oxygen UV-Flux 25% Development Kit
    • Sampling Data Loggers
    • K33 series Data Loggers
    • CO2 Probes 1%, 30%
    • CO2 Level controllers
    • TR250Z O2 Sensors

System Requirements

    • 1GHz processor with 1GB RAM, 1GB free disk space (2GB free disk space for 64 bit systems)
    • Windows XP/7/8/8.1 with Microsoft .NET Framework 4.0 (.NET framework will automatically be installed if required).
    • GasLab is not supported on Windows Vista, XP Media Center or XP Tablet editions.
    • On Intel-based Apple PCs the software can be run on a Windows 7 or Windows 8 Virtual Machine using VMWare Fusion and the .NET framework.

    Any system not meeting these minimal requirements is not recommended. The software will not perform as expected.

    Installation

    To install GasLab® send us an email using the link below, and we'll immediately send you back a link to download the latest version. Download the program to a folder on your hard drive, then double click on it to finish the install.

    If you have version 2.0.8.14 or older of Gaslab® you can run both programs at the same time. Note that previous versions may be required to run some of our older products, so you should test both versions before deleting the older one.

    Request Link to Install GasLab® Software

    Quick Start Guide for USB Probes, Development Kits (pdf)

    GasLab® User Manual (pdf)

    Possible Warning During Installation

    The GasLab® software has been tested and is verified to be 100% safe to install. Depending on your PC's security settings you may see a warning that it is unrecognized. Click the "More info" link, then click "Run anyway."


    XT10 Data Logger Software

    Supported Products

        • XT-10 - Rechargeable CO2 Monitor and Data Logger

    This software is an XT-10 data logging software for Windows PC. To use, download the zip file, uncompress it, and double click the EXE file to install.

    Download (zip)


    pSense Data Logger Software

    Supported Products

        • pSense
        • Manometer

    This software is an update to the pSense hand-held meter data logging software for Windows PC. Uninstall the previous software before updating. To use, download the zip file, uncompress it, and double click the EXE file to install.

    Download (zip)

    Silicon Labs USB/UART Cable OEM Driver for Windows PCs. To use, download the zip file, uncompress it, and double click the _x86.EXE file for 32-bit operating systems or the _x64.EXE file for 64-bit operating systems to install.

    Download (zip)




    cSense Data Logger Software

    This software is an update to the Windows PC data logging software shipped with the cSense desktop meters. Uninstall the previous software before updating. To use, download the zip file, uncompress it, and double click the EXE file to install.

    Download (zip)

    Silicon Labs USB/UART Cable OEM Driver for Windows PCs. To use, download the zip file, decompress it, and double click the _x86.EXE file for 32-bit operating systems or the _x64.EXE file for 64-bit operating systems to install.

    Download (zip)






    TIM12 Data Logger Software

    This software is an update to the Windows PC data logging software shipped with the TIM12 desktop meters. Uninstall the previous software before updating. To use, download the zip file, decompress it, and double click the EXE file to install.

    Download (zip)

    Silicon Labs USB/UART Cable OEM Driver for Windows PCs. To use, download the zip file, decompress it, and double click the _x86.EXE file for 32-bit operating systems or the _x64.EXE file for 64-bit operating systems to install.

    Download (zip)




    SAN-0001 Personal CO2 Monitor & Data Logger

    This zip file contains latest versions of the software, manual, and Quick Start guide for the SAN-0001 Personal CO2 Monitor & Data Logger. The software allows you to download time-stamped data to a file to view or import into a spreadsheet. It runs on Windows 7 or higher.

    Supported Products

        • SAN-0001

    Download (zip)




    CM-0007 CO CO2 Monitor & Data Logger

    This zip file contains latest versions of the software and manual for the CM-0007 CO & CO2 Monitor & Data Logger. The software allows you to download time-stamped data to a file to view or import into a spreadsheet. It runs on Windows 7 or higher.

    Supported Products

        • CM-0007

    Download (zip)




    AQ500 OEM Configuration Utility

    The AQ500 OEM configuration utility is for use with the AQ500 OEM development kit and allows for full customization of the functionality of the unit. For more advanced customization please contact us for quotes on firmware development and potential resources

    Supported Products

        • AQ500 OEM Platform

    System Requirements

        • Windows XP SP3 or higher
        • Microsoft .Net Framework 3.5 SP1
        • Pentium 4 2.4Ghz or higher processor
        • 1GB of RAM

    Any system not meeting these minimal requirements is unrecommended. The software will not perform as expected.

    Install Now (exe)




    SenseAir Sensor SDK Toolkit

    The SensorSDK is for OEM resellers and users looking for advanced tools and configuration options for the K-30 and K-33 sensors. With a focus towards configuration and advanced functionality it is not suited for day-to-day operation of our sensors, but rather configuration of specific parameters in batch and verification of functionality. It is only compatible with the K-series of SenseAir sensors. (Not for sampler with data logging).

    View an Installation Instructional Video

    Install Now (msi installer)




    Modbus/I2C Communication Documentation for all K-Series Sensors

    This documentation includes the parameters to communicate with our K-series sensors using Modbus or I2C.

    SenseAir Communication Documentation (zip)




    UIP Software for SenseAir Wall-Mount CO2 Transmitters

    Software to configuration aSense, eSense and tSense wall CO2 transmitters. A custom USB cable is required in order to communicate with the transmitter and your PC. Click here to purchase the cable.

    UIP Software




    COM Port Utility

    Download this PDF file to get step-by-step guide on reassigning COM ports. Useful for instances in which your PC assigns a port number higher than 8 to your sensor.

    Guide for Reassigning COM Ports (pdf)

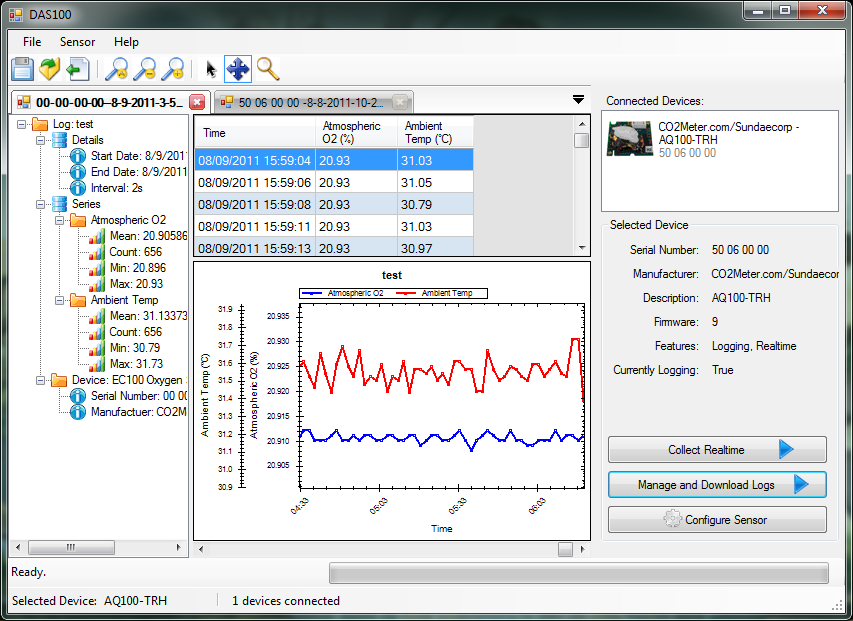

    DAS: Data Acquisition Software

    CO2 Meter's legacy software for sensor configuration. DAS no longer supported. Use GasLab® instead. Same system requirements as GasLab® shown above. Any system not meeting these minimal requirements is not recommended as the software will not perform as expected.

    Install DAS Software (executable)

    Getting Started Video

    DAS User Manual (pdf)




    Mac GNU/Linux Support

    WINE can be used to run CO2Meter.com supplied software on many Mac or Linux-based computers. We've been told it works by clients, but because we use PCs only, we cannot support this program.

    WineHQ.org Official Page




    Sensor Comparison Chart

    All our sensor specs on a single page PDF to compare features.

    Sensor Comparison Chart
