COZIR WR 5% CO2 Sensor

COZIR WR 5% CO2 Sensor
Regular price $109.00

POs or wholesale quantity discounts click here

The COZIR-WR is a low power, high performance CO2 sensor that can measure up to 5% (50,000ppm) CO2 levels. It is suitable for measuring high concentrations of CO2 in closed-loop sampling applications or battery operation in portable sampling instruments.

Based on infrared LED technology and innovative optical designs, the COZIR combines the accuracy of NDIR technology with wide-range CO2 measurement in a flexible package for OEM integration.

Features

  • 0-5% carbon dioxide measurement
  • Industry standard serial communication
  • Simple to install, pre-calibrated and ready-to-use

Models

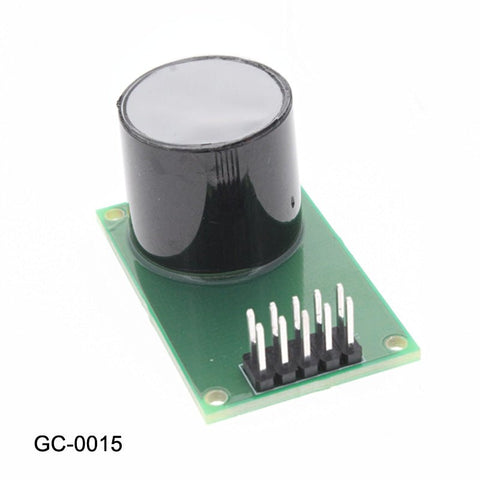

GC-0015 COZIR WR 5% CO2 Sensor Only - for integration into high-volume OEM products. Contact us directly for wholesale pricing on large quantities of this sensor.

CM-0124 COZIR WR 5% CO2 Sensor Development Kit - Easy to use, simply plug the sensor module into your PC via USB. Use our free GasLab® software to measure and graph carbon dioxide, to configure the sensor or for data logging.

Specifications

  • Measurement Range: 0-5% CO2
  • Sensing Method: NDIR with Gold-plated optics
  • Sample Method: Diffusion (default) or sampling with optional tube adapter
  • Accuracy: ±70 ppm ± 5% of reading
  • Sample Rate: 500 ms (2 Hz) measurement interval
  • Response Time Filter: 4 secs to 2 mins (user configurable)
  • Serial communications: 9600/8/1/N
  • Analog voltage output proportional to CO2 concentration
  • Warm-up Time: < 10s
  • Operating Conditions: 0°C to 50°C, 950 mbar to 10 bar

Electrical/Mechanical

  • Power Input: 3.3 ±0.1 volt  DC < 3.5 mW
  • Peak current: 33mA
  • Weight: 8 grams
  • Devkit includes 6’ (1.8m) USB cable (non-standard)

Warranty

  • 90 Days

Free Easy-to-use GasLab™ Software

This device uses GasLab® software for setup, calibration, data logging, and real-time data analysis. GasLab® makes it easy to export data into a .CSV file that can be imported into any industry-standard software or spreadsheet. GasLab® runs on Windows XP or higher, and free to use with our products.
