CO2 Industrial Gas Detector
With the CM-900 CO2 Industrial Gas Detector, customers can gain peace of mind and protection when working near hazardous gases like carbon dioxide in industrial applications. Plus, this device features an industrial enclosure designed specifically for harsh environments and wash-down applications.
The CM-900 is an ideal solution for keeping establishments and employees continuously protected, all while maintaining compliance with CO2 safety standards. This device also meets all NFPA, IFC, and NBIC standards as they pertain to gas safety requirements.

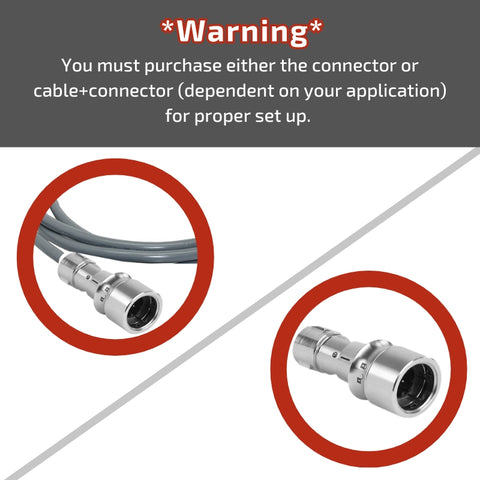

*PLEASE NOTE: For proper installation of the CM-900 or CM-902 industrial gas detectors, a CM-900-CBL OR CM-900-CON MUST be purchased with this device*
Features
- ACCURATE: Fast and Precise CO2 measurements - in seconds!
- DURABLE: Designed for the industry, rugged industrial IP64 enclosure
- CUSTOM: Users can configure 3-relays dependent upon application
- OUTPUT SIGNAL: Device features 4-20mA to communicate with Building Management Systems
- ACCESSORIZE: Gain elevated accessories like the CM-1029 strobe siren
- RANGE: Ability to monitor 0-5% of CO2 concentrations
-
AUDIBLE/VISUAL: Gain instant Audible or Visual Alarms for Potential Leaks
-
TRUSTED: 1-year limited warranty with Calibration Certificate
Models
- CM-900 - CO2 Industrial Gas Detector
- CM-902 - O2 Industrial Gas Detector
Warranty
- 1-year warranty - see CO2Meter Terms & Conditions
Specifications
- CO2 Measurement Range: 0-5% (50,000ppm)
- Alarms: 5,000 ppm TWA, 5,000ppm, 3% CO2 (configurable)
- Alarm Relays: 3
- Alarm Response Time: < 60 seconds
- Operating Temperature: 0-50°C (32-122°F) (CO2)
- Calibration: Manual with test gas or factory calibration
- Dimensions: 8.25 in x 6.25 in x 3 in
- Weight: 1.5 lbs.
- Sensor Life Expectancy: 15 years
Electrical
- 12-24VDC hard-wired power option (accessory must be purchased)
- Power Consumption: 3 Watts
- 6VDC battery backup connections
- Relays: Peak Current < 2A @ 30VDC or 250VAC, SPDT
- Relay Color Coding: Red & White = Normally Open Blue & White = Normally Closed
Accessories
- CM-900-CON: CO2 Industrial Gas Detector Connector
- CM-900-CBL: CO2 Industrial Gas Detector Cable
- CM-902: O2 Industrial Gas Detector
- CM-1029: Industrial Sire Strobe
Accessories
- CM-900-CON: CO2 Industrial Gas Detector Connector
- CM-900-CBL: CO2 Industrial Gas Detector Cable
- CM-902: O2 Industrial Gas Detector
- CM-1029: Industrial Sire Strobe
-
