SKU:SV-1029

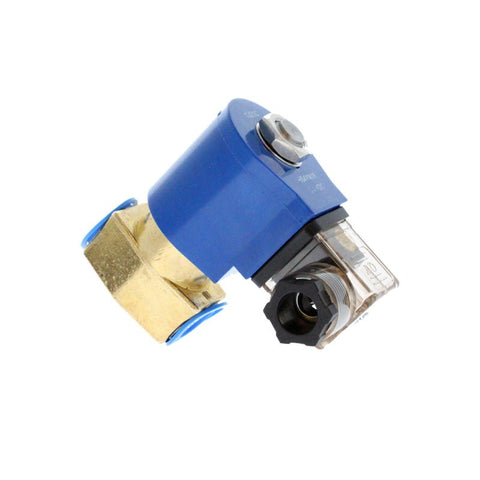

Solenoid Shut Off Valve - 3/8 inch
Couldn't load pickup availability
The SV-1029 Safety Shut Off Valve 3/8 inch automatically shuts off the gas supply in the room or at the tank for several of our devices in case of a high-gas alert.
This 3/8 inch shut off valve uses one of the relays on our devices which trips when gas levels exceed the recommended minimums. This provides automatic control in case of a gas leak. It includes a 24V power supply.
The SV-1029 Solenoid Safety Shut Off Valve works with these products:
3/8 inch is common in beverage industries. For applications using rigid pipe or tubing (typically agriculture industries) we also have a 1/2 inch hose shut off valve.
SV-1030 Solenoid Shut Off Valve 1/2 inch - designed to be utilized with any of our remote storage safety alarms, and can be directly wired to the SV-10230 safety shut off.
Specifications
- Pipe Size: 3/8 inches
- Orifice Diameter: 1/8 inches
- Minimum Operating Pressure: 0 psi
- Max Operating Pressure: 140 psi
- Coefficient of volume: 0.30
- Body Material: Brass
- Length: 1 15/64 inches
- Width: 1.72 inches
- Height: 3.25 inches
- NEMA Rating: 4X
- IP Rating: 65
- Standards: UL, CSA
- UL Approved
- 24VDC, 10 Watts

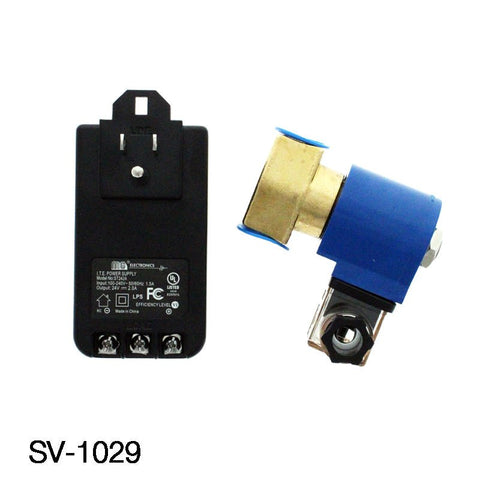

Includes
- 110VAC to 24V Power Supply
Warranty
- 1 year - See CO2Meter Terms and Conditions.
-
