COZIR Sensor Tube Cap Adapter

CM-0013

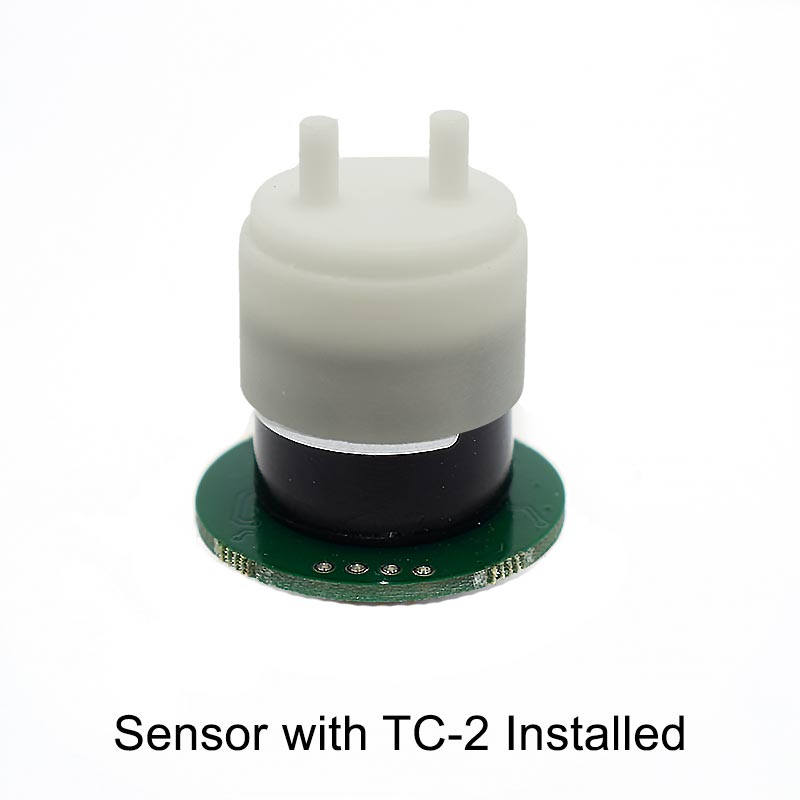

• The Tube Cap Adapter converts the COZIR CO2 sensor from diffusion sampling to draw sampling
• For use with the COZIR 5-100% Wide Range or SPRINTIR 20 Hz 5-100% Wide Range (not included)
• O ring compression seal so sensor can be removed for cleaning
• Solid Delrin - zero gas absorption
• total weight 29 grams, sensor and tube adapter
• Pressure tested to 2 BAR, 30 PSI higher on special request
• Machined to high tolerances to ensure a tight fit and no leaks
• Easy to install with screwdriver only, no sensor modifications required
• Use with the Sensor Pump Kit to create a complete 0-100% CO2 sampling solution

Dimensional Drawings (pdf)
