LOX-O2-F UV Flux 25% Oxygen Flow Through Sensor

LOX-02-F UV Flux  25% Oxygen Smart Flow Through Sensor l CO2Meter
Regular price $132.00 Sale price

Compare at $179.00

POs or wholesale quantity discounts click here

he LOX-O2-F: UV Flux 25% Oxygen Flow Through Sensor (formerly known as OX-0055) measures ambient oxygen levels using the principle of fluorescence quenching by oxygen. This provides the benefits of lower power requirements and a longer lifetime.

Features

  • Flow-through housing for easy sample gas management
  • Fast response T90 <10s
  • Works in vacuum and high oxygen concentrations
  • RoHs & REACH compliant

Models

  • LOX-O2-F Sensor Only – for integration into high-volume OEM products.
  • CM-42990 MX Board Same functionality as the development kit without USB cable or software.

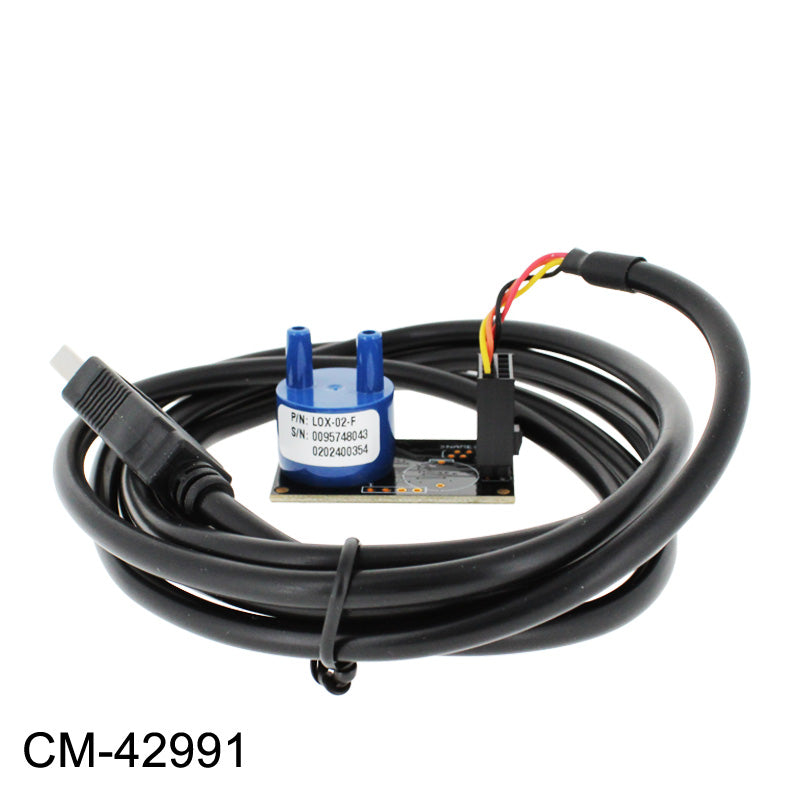

  • CM-42991 Development Kit – Easy to use, simply plug the MX Board into your PC via the included serial UART to USB cable. Use our free GasLab® software to measure and graph oxygen, barometric pressure, temperature, and % relative humidity.

Specifications

  • Measuring Gas: Oxygen
  • Measurement Range: 0 - 25% O2
  • Sensing Method: Fluorescence quenching by oxygen
  • Measurement Interval: 1 Sample/second
  • Oxygen Pressure Range: 0 — 300mbar ppO2
  • Response Time: T90 < 10s
  • Warm-Up Time: < 60 Seconds at 72°F (22°C)
  • Accuracy: Better than 2% at full scale
  • Humidity: 0-99% RH (non-condensing)
  • Resolution: 0.10% / 0.1mbar
  • Temperature Accuracy: +/- 2 degrees C
  • Pressure: ±5mbar
  • Operating Temperature: -30°C to +60°C
  • Barometric Pressure Range: 500 to 1200mbar
  • Lifetime: > 5 years

Electrical / Mechanical

  • Supply voltage: 4.5 - 5.5 VDC
  • Supply current: <7.5mA (streaming one sample per second)
  • Output type: 3.3V TTL level USART
  • Interface: UART or analog

Warranty

  • See CO2Meter Terms and Conditions.

SST Oxygen Sensor Datasheet Data Sheet (pdf)

SST Sensor Manual Operation Guide Sensor Manual (pdf)

MX Board Manual MX Board Manual (pdf)

Free Easy-to-use GasLab® Software

This device uses GasLab® software for setup, calibration, data logging, and real-time data analysis. GasLab® makes it easy to export data into a .CSV file that can be imported into any industry-standard software or spreadsheet. GasLab® runs on Windows XP or higher, and free to use with our products.

Download Latest Software Here

System Requirements for Data Logging or Changing Defaults

  • Windows XP SP2 or newer
  • Microsoft .Net 3.5 Runtime Libraries.

Micro-Pump Kit includes all the tools you need to utilize the tube-cap adapters as part of a sampling sensor system.

Nafion Tubing is a highly selective, semi-permeable membrane to water vapor. If gases inside Nafion tubing are wetter than gases surrounding the tubing, drying will occur. If the surrounding gases are wetter, humidification will occur.

Micro Gas Sampling Pumps provide a constant flow of air across the sensor with a tube cap - perfect for bench-top testing of sensors for closed-loop sampling applications.
