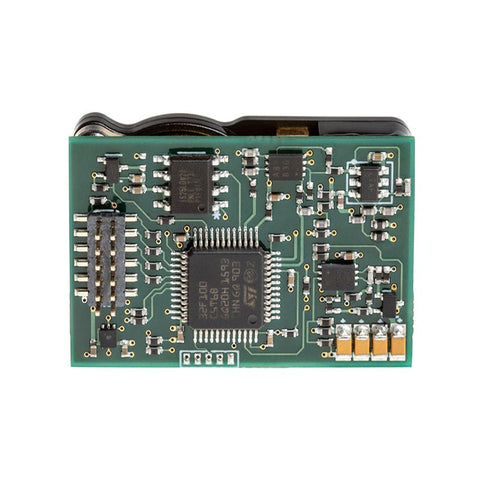

CozIR®-LP2 5000ppm CO2 Sensor

CozIR®-LP2 5000ppm CO2 Sensor
Regular price $129.00

POs or wholesale quantity discounts click here

The CozIR®-LP2 5000pp CO2 Sensor holds the lowest power and longest lifespan of an infrared CO2 sensor available today, with I2C interface.

The GC-0034 or CozIR®-LP2 5000ppm CO2 Sensor prides itself on low power consumption which makes it easily integrated into battery-powered systems, including smart technology devices and IoT applications.

Designed around measuring low levels of carbon dioxide, the miniature, ultra lightweight GC-0034 can be utilized in many gas monitoring and detection systems.

Features

  • Measures up to 1% CO2 concentration
  • Solid-state, no moving parts, no heated filaments
  • Vibration and shock resistant, non-heating
  • Digital (UART) and I2C Output
  • Up to 50X lower power than typical NDIR CO2 Sensors
  • Compact size, for easy instrumentation integration
  • Long lifespan, low maintenance
  • Ideal for wireless, portable, wearable and self-powered systems
  • Supports energy-efficient smart home environments
  • Easily integrates into applications such as IAQ, HVAC, Agriculture, MAP, Automotive, Aerospace, and Safety.

Models

CM-20141 COZIR LP2 Development Kit  Simply plug the USB cable into your Windows 7-10 PC and download our free GasLab® software to measure, graph, and log carbon dioxide data.

CM-20140 - COZIR LP2 5000ppm CO2 Sensor on Board – Same functionality as the development kit without USB cable or software.

GC-0034 COZIR LP2 5000ppm CO2 Sensor – designed for low concentration CO2 environments with measurement ranges from 0-2000 ppm, 0-5000 ppm and 0-1%.

Specifications

  • CO2 Measurement: Patented Solid-state NDIR absorption
  • Sample Method: Diffusion
  • Measurement Range: 0-2,000 ppm, 0-5000 ppm, 0-1%
  • Accuracy: ± (45 ppm+3% of reading)
  • Calibration: Auto calibration
  • Resolution: 1ppm
  • Pressure dependence: 0.15% of reading per mbar (normal atmospheric)
  • Operating pressure range: 500mbar – 10 bar
  • Response time: 30 secs - 3 mins
  • Sensor Life Expectancy: > 15 years
    • Electrical/Mechanical

      • Power Input: 3.25 to 5.5V. (3.3V recommended)
      • Power Consumption: 3mW
      • Connector: 2 x 6-way 1.27mm header
      • Communication: UART, I2C

      Warranty

      • 90 days - See CO2Meter Terms and Conditions.

      Documents

      Datasheet Data Sheet (pdf)

      User Guide User Guide (pdf)

      CozirLP2 Dimensional Drawings Dimensional Drawings (pdf)

      GSS Sensor Application Note CO2 Sensors for Ventilator and Capnography (pdf)

      GSS Sensor Application Note Minimizing Power Consumption (pdf)

      GSS Sensor Application Note Zeroing the CO2 Sensor (pdf)

      GSS Sensor Application Note Reducing the Impact of Condensation on CO2 Sensors (pdf)

      GSS Sensor Application Note Analog Voltage Output (pdf)

      GSS Sensor Application Note RoHS and REACH Compliance (pdf)

      Free Easy-to-use GasLab® Software

      This device uses GasLab® software for setup, calibration, data logging, and real-time data analysis. GasLab® makes it easy to export data into a .CSV file that can be imported into any industry-standard software or spreadsheet. GasLab® runs on Windows XP or higher, and free to use with our products.

      Download Latest Software Here

      System Requirements for Data Logging or Changing Defaults

      • Windows XP SP2 or newer
      • Microsoft .Net 3.5 Runtime Libraries
