Whether using C5, C10, C15, or C25 gas blends, the precision of your shielding welding gas mix directly impacts your welding results. An incorrect gas mixture can result in:
- Poor weld bead appearance
- Increased slag formation
- Reduced mechanical strength
- Failed code inspections

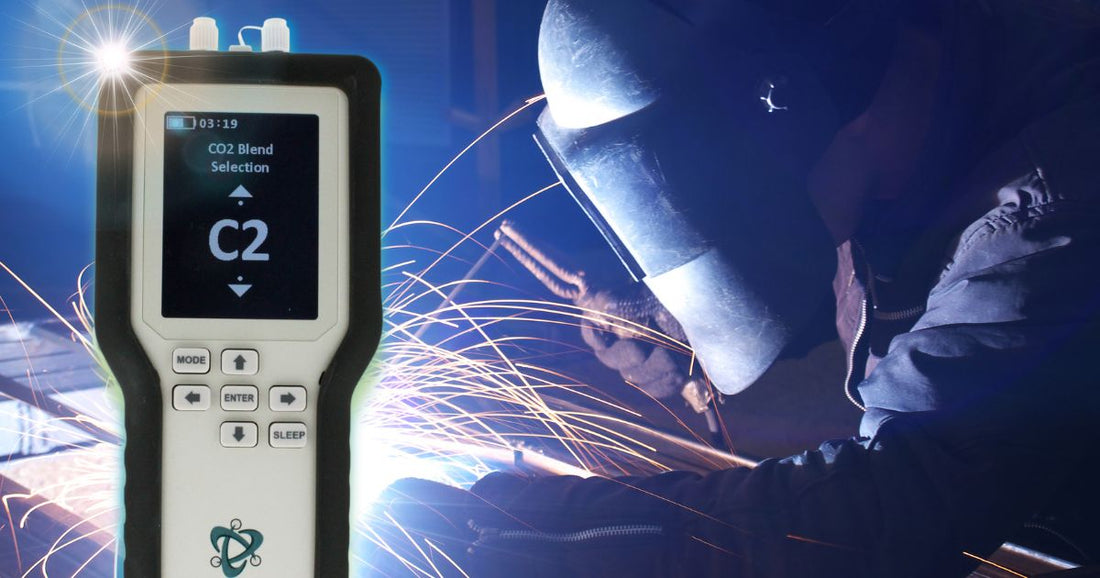

By using a portable CO2 welding analyzer like the CM-1650, welders can verify gas mix ratios on-site whether from gas cylinders, tank mixers, or bulk supply lines; ensuring the gas mixture aligns with AWS specifications and project requirements.
How does a CO2 gas analyzer work?
A CO2 analyzer for welding applications, operates by sampling the shielding gas flow and measuring CO2 concentrations using either:
1. Infrared (IR) Technology
This method detects how much IR light is absorbed by CO2 molecules in the sample. It is one of the most accurate technologies available and is commonly used in across all of our gas detection safety solutions, including our portable welding gas analyzers.
2. Thermal Conductivity Detection
This approach measures differences in heat conductivity between the test gas and a reference gas. It’s reliable but typically less precise than IR-based analyzers.
Both technologies provide real-time measurements, allowing for on-the-spot adjustments to gas composition and flow.
Key Benefits of a CO2 Welding Gas Analyzer
-
Improved Weld Quality: Maintain optimal CO2 levels in shielding gas to ensure defect-free welds.
-
Increased Productivity: Optimize arc stability and wire feed parameters with accurate gas mix readings.
-
Cost Savings: Avoid overuse of expensive shielding gases and reduce rework caused by poor welds.
-
Regulatory Compliance: Meet industry standards like AWS D1.1 and maintain gas usage documentation for audits.
What’s the Difference Between a Gas Detector and a Welding Analyzer?
Gas Detectors: Focused on Safety
Welding Gas Analyzers: Focused on Shielding Gas Accuracy
What is a CO2 Welding Gas Analyzer
At CO2Meter, we offer quality gas sensing solutions like the high-accuracy portable CO2 welding analyzer designed to measure CO2 levels in welding gas mixtures with preconfigured readings for:
- C5 (5% CO2)
- C10
- C15
- C25
- C50
- Custom CO2 ranges up to 100%
This device is trusted by welding professionals and gas distributors across the united states when verifying blend accuracy directly at the source whether from mixed cylinders or on-site gas mixers. It provides both fast and accurate readings to support quality control and minimize downtime.
Overall, using a CO2 gas analyzer in welding can help improve the quality and consistency of the welds, increase efficiency and productivity, and ensure compliance with regulatory standards.
Is a weld gas detector the same as a weld analyzer?
Although a gas detector and a gas analyzer have similar properties in the way in which they detect gas, they could not be more different in the way they are utilized.
A gas detector is typically used to detect the presence of certain gases in the air, such as carbon monoxide (CO), carbon dioxide (CO2), hydrogen sulfide (H2S), or oxygen (O2). These gases can be dangerous to human health or in the case of oxygen, pose a risk of explosion if present in certain concentrations. Gas detectors typically use sensors to detect the gas and provide a safeguard for safety with audible/visual alarms to warn welders when the concentration exceeds a certain threshold.
Fixed gas safety detectors like an or a Carbon Dioxide Safety Alarm are both commonly found in welding applications to protect workers near hazardous gases with audible/visual alarms; as well as meet OSHA codes.
On the other hand, a gas analyzer in welding is specifically used to measure the concentration of certain gases in the shielding gas used during the welding process, such as carbon dioxide. The gas analyzer provides a real-time measurement of the gas concentration and is used to ensure that the gas composition is optimized for the specific welding process being used.
When it comes to gas analysis in the field, analyzers like the CO2 portable welding gas analyzer provide verification of correct CO2 concentrations in welding gas mixes. This device measures mixed cylinder gas or blended gas at a mixer to provide accuracy of gas and purity of the welds. With preconfigured measurements for C5, C10, C15, C25 and C50 as well as custom ranges from C5-C100, this analyzer is sought after for providing the broadest measurement to the AWS standard.
While both gas detectors and gas analyzers may both be used to detect gases, they are typically used for different purposes and serve critical in their purpose for detection, sensitivity, and meeting standards.
Where can I get a welding gas analyzer?
There are many different welding supply stores and manufacturers who specialize in gas detection and welding equipment. While there is no "best" welding gas analyzer, a quality device depends upon the sensing method and the welders overall application and requirements.
When selecting a welding gas analyzer the staff at CO2Meter specializes in over 30 years of gas detection expertise and can walk you through each gas analyzer to find the right device that fits your industry needs and application.
Learn more about welding gas analyzers and selecting the right device or contact a CO2Meter expert at Sales@CO2Meter.com or 877-678-4259.
