SKU:MSC2-H2-System
Hydrogen (H2) Fixed Gas Detection System | Industrial Gas Leak Detection & Safety Monitoring System
Couldn't load pickup availability
The Hydrogen (H₂) Fixed Gas Detection System with Remote Sensor (MSC2) is an industrial-grade hydrogen gas detector designed for continuous H2 monitoring in high-risk environments such as energy systems, battery storage, welding and manufacturing facilities.
Hydrogen is a highly flammable gas that can ignite at low concentrations and disperse rapidly, making early detection critical. This fixed hydrogen gas detection system provides real-time leak monitoring, rapid alarm response and system integration to help prevent explosions, equipment damage, and safety incidents.
Built on the flexible MSC2 multi-gas safety platform, this system uses a remote hydrogen gas sensor to detect leaks at the source, trigger alarms, activate ventilation systems and integrating with BMS for immediate response.
Features
- 🔥 Continuous H₂ Monitoring
- 📡 Remote Sensor Detection
- 🏭 Industrial-Grade Design
- ⚠️ Audio/Visual Alarms + Relays
- 🔄 Multi-Gas Expandable
- 🔌 BMS & PLC Integration
- 🛠️ Custom Configurations
- ⚡ Flexible Power Options
- 🧱 IP65 Rugged Enclosure

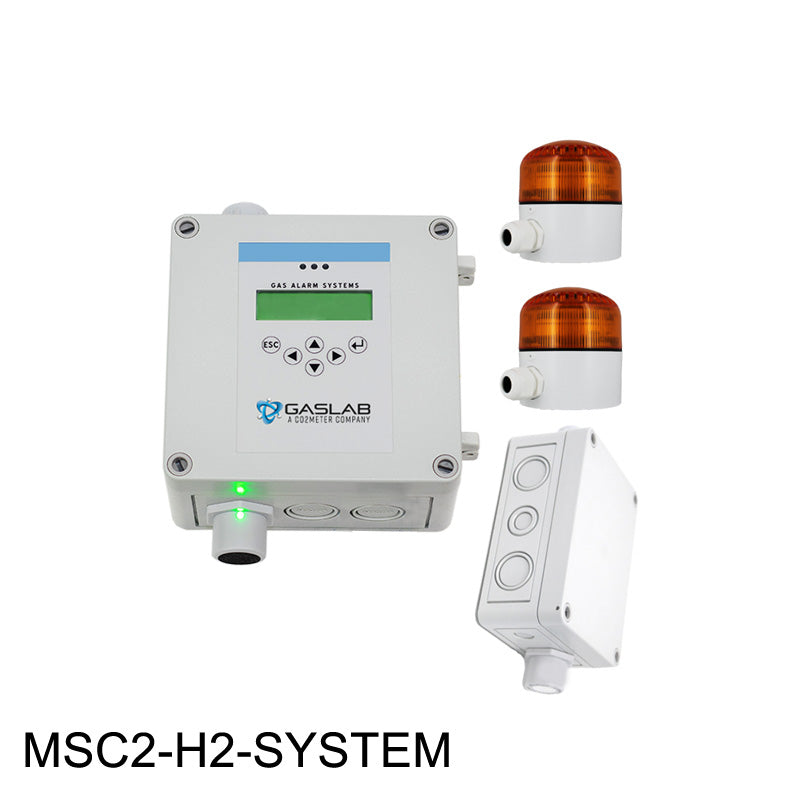

📦 What’s Included?
- MSC2 Fixed Gas Detection Controller (Main Display Unit)
- (1) Remote Hydrogen (H2) Gas Sensor
- (2) Audible & Visual Horn/Strobe Alarms
- Pre-Configured Alarm Relays (3 Outputs)
- Power Supply Compatibility (100–240 VAC / 24 VDC)
- Wall-Mount Hardware & Installation Kit
- User Manual & Quick Start Guide
Specifications
- Measurement Range: 0-1000ppm H2
- Gas: Hydrogen (H2)
- Housing Type C/E: Polycarbonate
- Installation: Wall Mounted
- Knockouts for Cable Entry: Standard 6x M20/25
- Ingress Protection: IP65
-
Temperature Range: -13°F to 140°F (-30°C to 50°C)
- Humidity Range: 15-90% RH non-condensing
- Storage Temperature: -4°F to 149°F (0° to 20°C)
- Power Supply: 100-240 VAC or 24VDC
- Power Consumption: 24 V DC | Max. 60 mA (1.5 VA), w/ sensor, w/o WAO
- Alarm Relay (3): 5 A Dry Contact Configurable
- Transistor Output (2): 24 V DC/0.1 A
- Analog Input (2/3): 4-20mA, overload and short-circuit proof, input resistance 130 proportional, overload and short-circuit proof, load ≤ 500 4–20 mA = measuring range
-
Analog Output Signal (1):
- 2.4–< 4 mA = tolerable under range
- 20–21.2 mA = tolerable over range
- ≥ 21,2 mA= error over range
- ≤ 2,0 mA = fault
- Controller Dimensions: 5.12 x 5.12 x 2.95 in. (130 x 130 x 75 mm)
- Controller Weight: 1.32 lbs. (0.6 kg)
Warranty
- 1 year - See CO2Meter Terms and Conditions
-
