SKU:SPRINTIR-6S-5
SprintIR®-6S-5 5% CO2 Sensor
No se pudo cargar la disponibilidad de retiro
The SprintIR®-6S-5 5% CO2 Sensor (formerly known as GC-0028) can take up to 20 readings per second, making it ideal for applications that require individual measurements at high repetition rates or where the CO2 concentration is changing rapidly.
The sensor is fitted with a standard flow-through adaptor so the CO2 gas can be passed over the optical sensor at high speed.
The SprintIR®-6S 5% CO2 Sensor uses patented NDIR solid-state LED optical technology enabling the sensor to respond to rapidly changing CO2 without compromising parametric performance.
Features
- NDIR LED sensor measures up to 5% CO2
- Solid-state, no moving parts
- Fast response rate - 20 readings/second
- Easy integration in healthcare, food packaging and scientific applications
Models
- SPRINTIR-6S-5 – SprintIR-6S 5% CO2 Sensor for integration into high-volume OEM products.
- CM-20300: SprintIR-6S 5% CO2 Sensor w/ MX Board

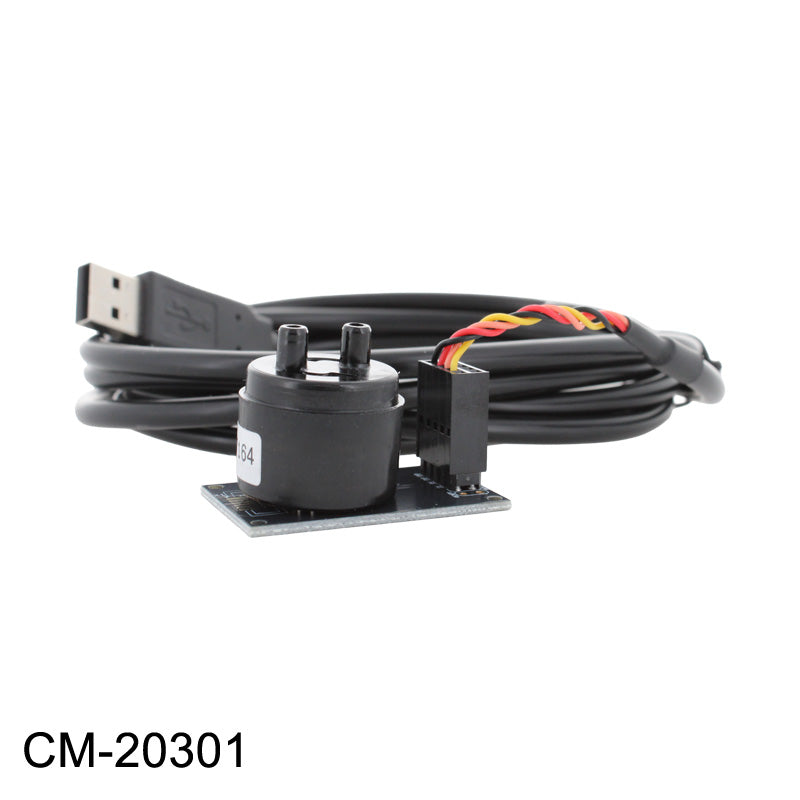

- CM-20301: - SprintIR-6S 5% CO2 Sensor Development Kit
Specifications
- CO2 Sensing Method: Non-dispersive infrared (NDIR) absorption
- Sample Method: Solid-state LED NDIR Diffusion
- Measurement Range: 0-5%
- Accuracy: ±70 ppm +/- 5% of reading @ STP
- Accuracy @ 100% Range: ±300 ppm +/-5% of reading @ STP
- Time to 1st Reading: <0.5 Seconds
- Operating Conditions - Temperature: 0°C to 50°C
-
Storage Conditions - Temperature: -40°C to +70°C
- Operating Conditions - Humidity: 0-95% RH, non-condensing
- Resolution: 10ppm
- Non Linearity: < 1% of FS
- Pressure Dependence: 0.13% of reading per mbar @STP
- Warm-up Time: < 30s.
- Response Time: Flow Rate Dependent
- Readings per Second: 20
- Operating Conditions: 0°C to 50°C, 0 to 95% RH, non-condensing
Electrical / Mechanical
- Power Input: 3.25 to 5.5V. (3.3V recommended)
- Peak Current: 33mA @ 2 readings/sec
- Average Current: <12mA
- Power Consumption: 3.5mW @ 2 readings/sec.
- Supply Voltage: 3.25V - 5.5V
- Interface: UART
- Dimensions: 25mm x 40mm x 31mm on PCB (L x W x H)
- Weight: 16g sensor, 5.8g board
Warranty
- 90 days - See CO2Meter Terms and Conditions
Documents
GSS Guide for Sample Draw Pumps (pdf)
Quality Certificate - ISO9001 (pdf)
Micro-Pump Kit includes all the tools you need to utilize the tube-cap adapters as part of a sampling sensor system.
Nafion Tubing is a highly selective, semi-permeable membrane to water vapor. If gases inside Nafion tubing are wetter than gases surrounding the tubing, drying will occur. If the surrounding gases are wetter, humidification will occur.
Micro Gas Sampling Pumps provide a constant flow of air across the sensor with a tube cap - perfect for bench-top testing of sensors for closed-loop sampling applications.
-
