SKU:MSC2-CO2-O2-SYSTEM
CO2 & O2 Fixed Gas Detection System for Grow Rooms & Indoor Agriculture | Multi-Gas Monitoring with Alarms
No se pudo cargar la disponibilidad de retiro
The MSC2-CO2-O2 System: CO2 & O2 Fixed Gas Detection System is an advanced multi-gas safety solution designed for continuous monitoring of carbon dioxide (CO2) and oxygen (O2) in indoor agriculture, grow rooms, restaurants, and beverage environments.
CO2 enrichment is widely used to optimize plant growth and carbonation systems, but elevated CO2 levels can lead to oxygen displacement. This system provides real-time monitoring, early hazard detection, and automated alarm response to protect personnel, maintain safe environments, and ensure compliance.
Built on the MSC2 multi-gas safety platform, this system uses remote sensors to detect gas concentration changes at the source; triggering alarms, activating ventilation and integrating with facility systems for rapid response.
Features
• Dual Gas Monitoring (CO2 + O2)
• Remote Sensor Detection
• Designed for Grow Rooms & Beverage Systems
• Audio/Visual Alarms + Relays
• Multi-Gas Expandable Platform
• BMS & Controller Integration
• Custom Configurations
• Flexible Power Options
• IP65 Rugged Enclosure

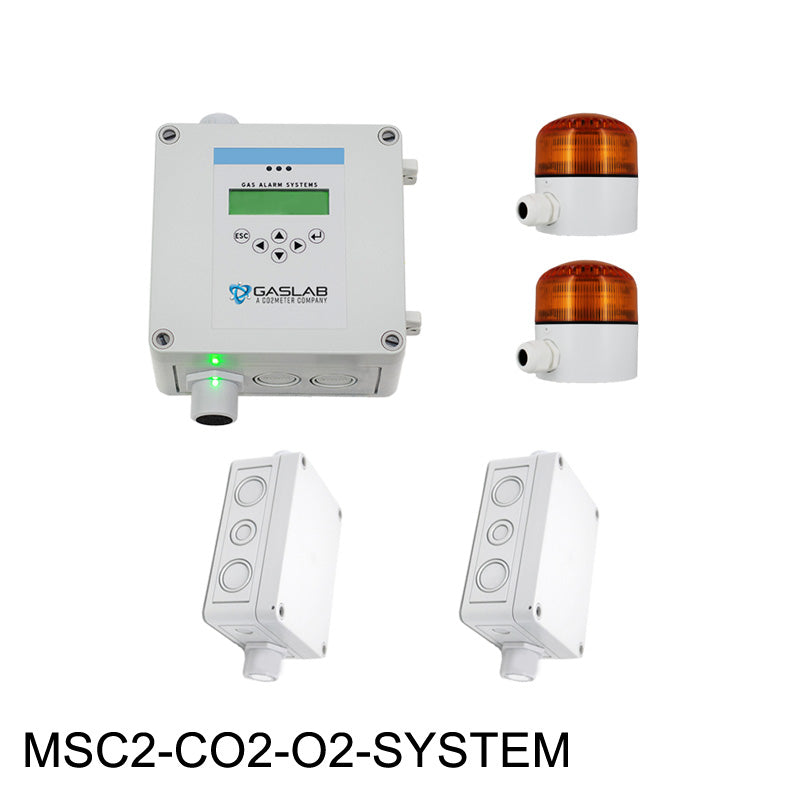

📦 What’s Included?
- MSC2 Fixed Gas Detection Controller (Main Display Unit)
- (2) Remote Gas Sensors (CO2 and O2)
- (2) Audible & Visual Horn/Strobe Alarms
- Pre-Configured Alarm Relays
- Power Supply Compatibility (100–240 VAC / 24 VDC)
- Wall-Mount Hardware & Installation Kit
- User Manual & Quick Start Guide
Specifications
- Gas Types: Carbon Dioxide (CO2) + Oxygen (O2)
- CO2 Measurement Range: 0–5,000 ppm (higher ranges available)
- O₂ Measurement Range: 0–25% Vol
- Housing Type C/E: Polycarbonate
- Installation: Wall Mounted
- Knockouts for Cable Entry: Standard 6x M20/25
- Ingress Protection: IP65
- Temperature Range: -13°F to 140°F (-25°C to 60°C)
- Humidity Range: 15-95% RH non-condensing
- Power Supply: 100-240 VAC or 24VDC
- Power Consumption: 24 V DC | Max. 60 mA (1.5 VA), w/ sensor, w/o WAO
- Alarm Relay (3): 5 A Dry Contact Configurable
- Transistor Output (2): 24 V DC/0.1 A
- Analog Input (2/3): 4-20mA compatible
- Analog Output Signal (1): Fault & range monitoring included
- Controller Dimensions: 5.12 x 5.12 x 2.95 in. (130 x 130 x 75 mm)
- Controller Weight: 1.32 lbs. (0.6 kg)
Warranty
- 1 year - See CO2Meter Terms and Conditions.
-
