SKU:CM-13140

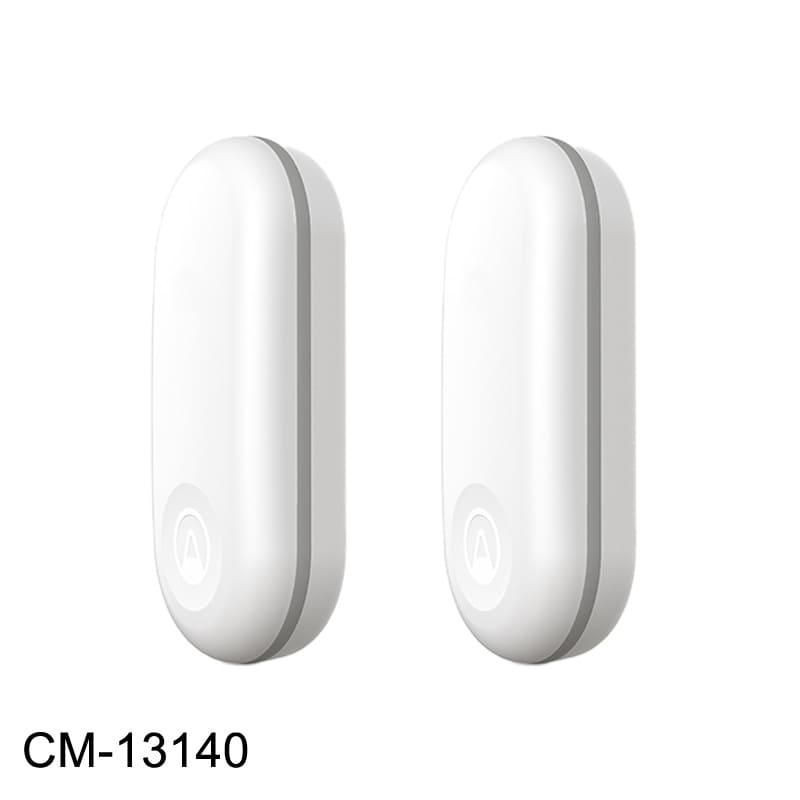

Space Nano: Ultra-Compact Indoor Air Quality Sensor for Flexible Monitoring
€95,76 EUR
€95,76 EUR
Sale
Sold out
Tax included.
Couldn't load pickup availability
Smaller than a deck of cards, smarter than you would expect! The CM-13140: Space Nano: Ultra Compact Indoor Air Quality Sensor is the ultimate compact indoor air quality solution. This device is purpose built for smart buildings that demand powerful performance in a discreet form.
Designed for scalable deployment, this wireless sensor provides continuous environmental data via the Dashboard or open API, helping building managers, university professors, and teams optimize energy use, indoor comfort, and occupant well-being.
Features
- Ultra-Compact Design – Low-profile, minimal footprint ideal for modern interiors and aesthetic-sensitive environments
- Multi-Sensor Monitoring – Measures temperature, humidity, noise, light, and air pressure for complete indoor environment tracking
- Wireless & Battery-Powered – Easy, cable-free installation with long battery life for low-maintenance operation
- Real-Time Data Access – Monitor remotely via Dashboard or integrate with your BMS using open API
- Scalable for Any Building – Perfect for smart offices, schools, hotels, healthcare facilities, and other high-traffic shared spaces
-
Supports ESG & Comfort Goals – Enables data-driven decisions to improve indoor comfort and align with WELL and RESET standards
💳 Subscription Tiers (Annual Per Device):
- Space Pro – 1 Year, Annual Subscription (contact us for pricing)
- Space Plus – 1 Year, Annual Subscription (contact us for pricing)
- Space CO2 – 1 Year, Annual Subscription (contact us for pricing
- Space CO2 Mini – 1 Year, Annual Subscription (contact us for pricing)
- Space Nano – 1 Year, Annual Subscription (contact us for pricing)
Specifications
- Temperature: ± 0.2 °C (± 0.4 °F) accuracy
- Relative Humidity: ± 2% RH within operating range
- Barometric Pressure: ± 10 Pa unit-to-unit; ± 30 Pa absolute within 300–1250 hPa
- Light (Lux): ± 5 lux ± 10% accuracy in the most sensitive angle; 5‑minute default sampling (2.5 min optional)
-
Virtual Sensor: Mold Risk Indicator (data visible in web dashboard)
- Dimensions: 1.46 × 3.30 × 0.84 in (37 × 84 × 21.3 mm)
- Weight (with batteries): ~0.035 oz (59 g) per unit; packaged weight ~5.64 oz
- Operating Conditions: −22 °F to 140 °F (−30 °C to 60 °C), 5%–99% RH

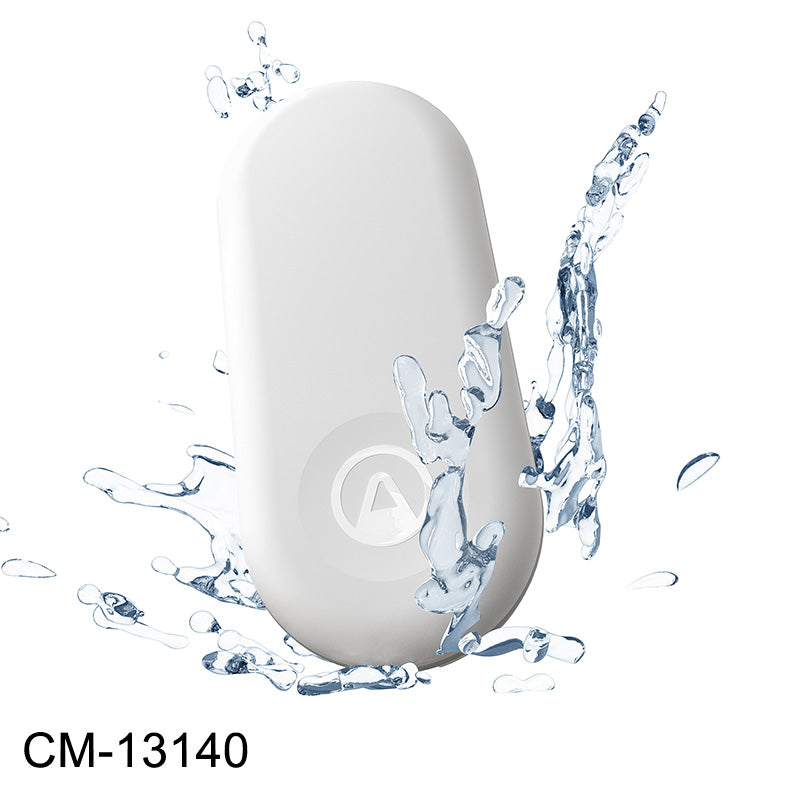

- Ingress Protection: IP64 (dust and splash-resistant; outdoor use requires secure mount and shade)
CO2 details:
- Sensing Technology: NDIR Sensor (Non-Dispersive Infra-Red):
- Measurement Range: 400–5000 ppm
- Non condensing: 0 – 85%RH
- Optimum Accuracy: ±30ppm ±3% within 15 – 35°C and 0 – 80% RH
- Multiple settling cycles: locations with natural indoor CO2 fluctuations
- Relative light intensity: (0 - 100%)
Warranty
- 1 year - See CO2Meter Terms and Conditions
Accessories
Space Nano Wall Bracket: please contact us directly for this accessory.
-
